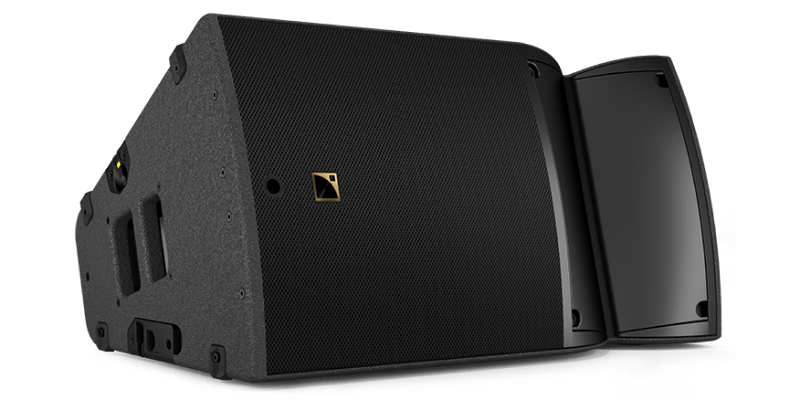

L- Acoustics A15 Wide
A15 Wide is a medium throw loudspeaker designed for production applications. Part of the multifunctionnal A15 family, the passive 15“ enclosure offers exceptional deployment flexibility and simplicity without compromising performance. The 30° enclosure of A15 Wide enables a compact array to provide expansive coverage while preserving sightlines. Panflex allows users to adapt the directivity to the audience geometry and ensure exceptional frequency response stability. Combinations of A15 Wide and A15 Focus can be flown or stacked to form a vertical line source. A15 Wide deploys radially to offer broad horizontal coverage, particularly suited for infill and side-fill applications on large stages. A15 Wide can also be used individually as a configurable directivity point source for delays and pole-mounted applications. A15 Wide provides the low frequency contour of a large concert system and KS21 subwoofer further reinforces the contour and extends the bandwidth to 29 Hz. A15 Wide is a highly scalable solution that delivers concert level performance for small to large events or supplements a larger L-Acoustics solution for the world’s biggest stages.

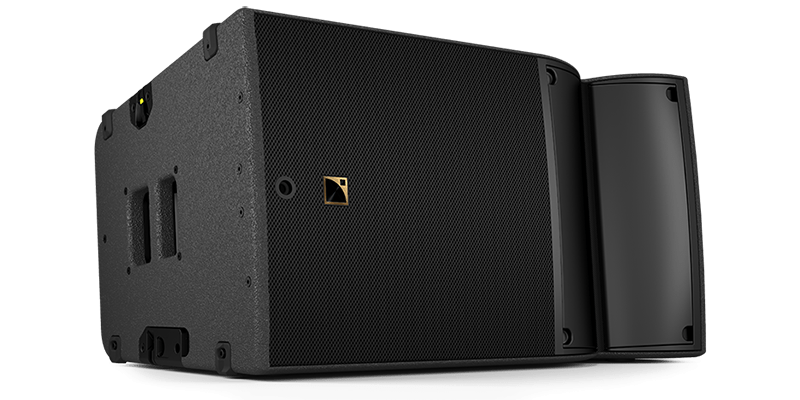

L- Acoustics A15 Focus
A15 Focus is a medium throw loudspeaker designed for production applications. Part of the multifunctional A15 family, the passive 15“ enclosure offers exceptional deployment flexibility and simplicity without compromising performance. With a tightly-controlled 10° enclosure coverage, A15 Focus boasts an impressive output of 144 dB and ensures projection up to 45 m. Panflex allows users to adapt the directivity to the audience geometry and ensure exceptional frequency response stability. Combinations of A15 Focus and A15 Wide can be flown or stacked to form a vertical line source. A15 Focus can also be used individually as a configurable directivity point source for front fill or delay applications where a narrow coverage is required. A15 Focus provides the low frequency contour of a large concert system and KS21 subwoofer further reinforces the contour and extends the bandwidth to 29 Hz. A15 Focus is a highly scalable solution that delivers concert level performance for small to large events or supplements a larger L-Acoustics solution for the world’s biggest stages.

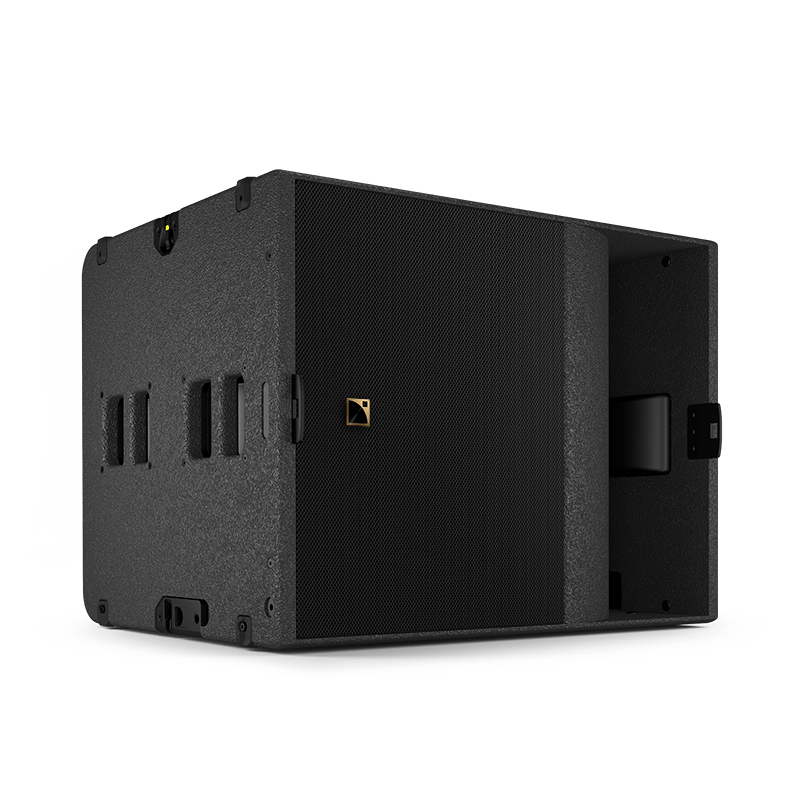

L- Acoustics KS21
Passive subwoofer with a high-excursion, direct-radiating 21 in transducer mounted in a bass-reflex tuned enclosure with laminar vents for increased LF efficiency. The enclosure cabinet is constructed of premium grade Baltic beech and birch plywood. The transducer front is protected by a coated steel grill and an acoustically transparent fabric. The enclosure integrates four ergonomic handles, and panel corner stops for enclosure protection. The captive flush-fitting hardware allows for rigging and combining with other loudspeakers of the same family. Dedicated rigging accessories allow for flown or stacked configurations. Combining two or more elements with associated presets achieve omnidirectional or cardioid directivity patterns. Exclusively driven and protected by a proprietary amplified controller through a dedicated preset.

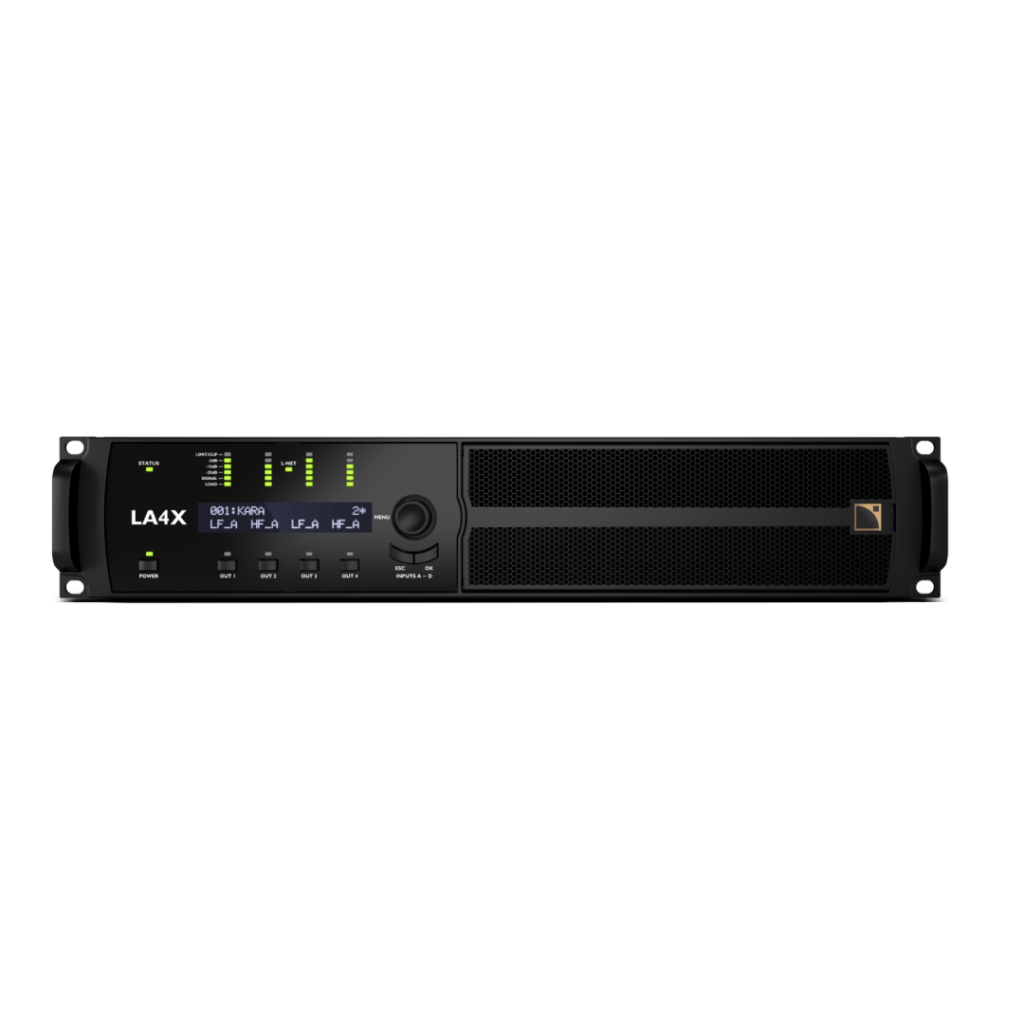

L- Acoustics LA4X
System amplifier (class D) with an output power of 4 x 1,000 W RMS into 4 or 8 ohms, A/D converters and integrated DSP processor. Flexible 4 x 4 matrix with 4 inputs and 4 outputs. Power supply via SMPS (Switched Mode Power Supply) with power factor correction (PFC). Heat dissipation by temperature-controlled fans. SpeakONTM speaker connectors. Ethernet connectors to pass AVB audio and for remote control and monitoring. Analog and digital (AES/EBU) audio inputs with links. Front panel user interface with display. DSP provides IIR and FIR filters, delay adjustments, contour filters, and air absorption compensation filters. Protection against thermal overload and over-excursion. Built-in library with factory presets for all manufacturer’s loudspeakers and 10 user memory locations.
